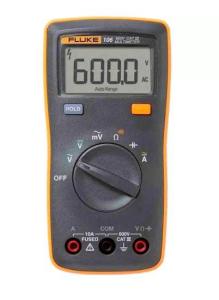

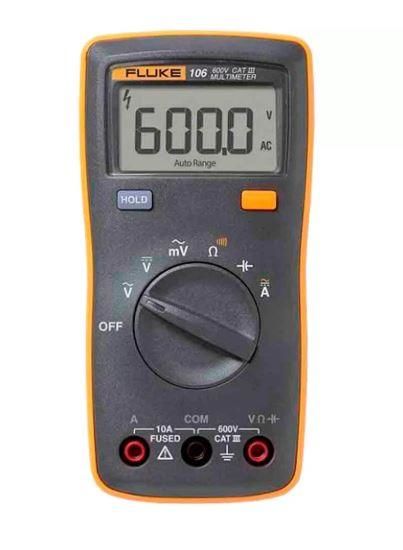

Fluke 106 Erta Cep Tipi Dijital Multimetre 600v

Fluke 106 Erta Cep Tipi Dijital Multimetre 600v

Bugün sipariş verdiğinizde aynı gün kargoda!
3.910,35 TL
KDV Dahil
Taksit Seçenekleri
Marka
FLUKE
Kategori
EL TİPİ DİJİTAL ÖLÇÜ ALETLERİ
Teslimat Günü
Fiyat
3.258,63 TL + KDV
Stok Kodu
36460
* 391,10 TL den başlayan taksitlerle!!
Kargo bedava
Ürün Bilgisi
Yorumlar (0)
Taksit Seçenekleri
Önerileriniz
Ürün Bilgisi

Accuracy Specifications
Function Range Resolution Accuracy
AC Volts1 6.000 V
60.00 V
600.0 V		 0.001 V
0.01 V
0.1 V		 1.0 % + 3
DC Volts 6.000 V
60.00 V
600.0 V		 0.001 V
0.01 V
0.1 V		 0.5 % + 3
AC Millivolts 600.0 mV 0.1 mV 3.0 % + 3
Diode Test2 2.000 V 0.001 V 10 %
Resistance
(Ohms)		 400.0 O
4.000 kO
40.00 kO
400.0 kO
4.000 MO
40.00 MO		 0.1 O
0.001 kO
0.01 kO
0.1 kO
0.001 MO
0.01 MO		 0.5 % + 3
0.5 % + 2
0.5 % + 2
0.5 % + 2
0.5 % + 2
1.5% + 3
Capacitance3 50.00 nF
500.0 nF
5.000 µF
50.00 µF
500.0 µF
1000 µF		 0.01 nF
0.1 nF
0.001 µF
0.01 µF
0.1 µF
1 µF		 2 % + 5
2 % + 5
5 % + 5
5 % + 5
5 % + 5
5 % + 5
Frequency4 Hz
(10 Hz – 100 kHz)		 50.00 Hz
500.0 Hz
5.000 kHz
50.00 kHz
100.0 kHz		 0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 kHz		 NA
Duty Cycle4 1 % to 99 % 0.1 % NA
AC Current
(40 Hz to 200 Hz)		 4.000 A
10.00 A		 0.001 A
0.01 A		 1.5 % + 3
DC Current 4.000 A
10.00 A		 0.001 A
0.01 A		 1.5 % + 3
  1. All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
  2. Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA.
  3. Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range).
  4. All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
Function Overload Protection Input Impedance (Nominal) Common Mode Rejection Ratio Normal Mode Rejection Ratio
AC Volts 600 V 1 >10 MO <100 pF 2 >60 dB at dc,
50 Hz or 60 Hz		 -
AC Millivolts 600 mV >1M, <100 pF >80 dB at 50 Hz or 60 Hz -
DC Volts 600 V 1 >10 MO <100 pF >100 dB at dc,
50 Hz or 60 Hz		 >60 dB at 50 Hz or 60 Hz
  1. 6 x 105 V Hz Max
  2. For mV (AC), input impedance is approximately 1 MO.
General Specifications
Maximum Voltage Between any Terminal and Earth Ground 600 V
Display (LCD) 6000 counts, updates 3/sec
Battery Type 2 AAA, NEDA 24A, IEC LR03
Battery Life 200 hours minimum
Temperature
Operating 0 °C to 40 °C
Storage -30 °C to 60 °C
Relative Humidity
Operating Humidity Non-condensing when <10°C
=90 % at 10 °C to 30 °C; =75 % at 30 °C to 40 °C
Operating Humidity, 40 MO Range =80 % at 10 °C to 30 °C; =70 % at 30 °C to 40 °C
Altitude
Operating 2000 m
Storage 12,000 m
Temperature Coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Fuse Protection for Current Inputs 11A, 1000V Fast Fuse, Fluke specified part only

Size (HxWxL) 142 mm x 69 mm x 28mm
Weight 200 g
IP Rating IEC 60529: IP 40
Safety IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment IEC 61326-1: Portable
Electromagnetic Compatibility Applies to use the Korea only.  Class A Equipment (Industrial Broadcasting and Communication Equipment)1
