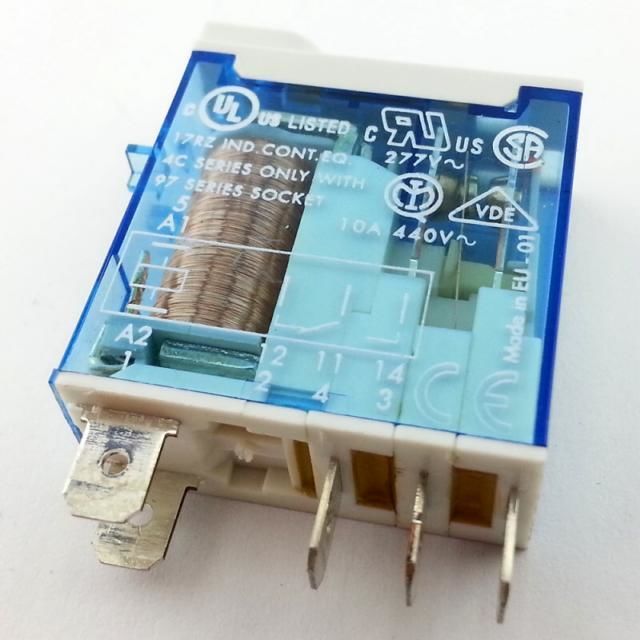

Finder Röle 46.61.9.012.0040 12v 16a Dc Tek Kontak Kilitli Test Butonu ve Hata Göstergeli
Bugün sipariş verdiğinizde aynı gün kargoda!
221,58 TL
KDV Dahil
Marka
Kategori
Fiyat
184,65 TL + KDV
Stok Kodu
22068
* 23,04 TL den başlayan taksitlerle!!
Finder Röle 46.61.9.012.0040 12v 16a Dc Tek Kontak Kilitli Test Butonu ve Hata Göstergeli
Ray Tip Soket 97.01
| Coil Voltage | 12 V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | Plug In | |
| Switching Current | 25 A | |
| Terminal Type | Quick Connect | |
| Coil Resistance | 300 Ω | |
| Maximum Switching Voltage AC | 250V ac | |
| Application | General Purpose | |
| Length | 29mm | |
| Depth | 12.4mm | |
| Height | 32.8mm | |
| Dimensions | 29 x 12.4 x 32.8mm | |
| Maximum Operating Temperature | +70°C | |
| Isolation Coil To Contact | 6kV | |
| Coil Power | 500mW | |
| Maximum Switching Power AC | 4 kVA | |
| Contact Material | Silver Alloy | |
| Minimum Operating Temperature | -40°C | |
| Number of Poles | 1 | |
| Operating Temperature Range | -40 → +70°C |
